EPE swimming ring Extruder

Ask Lasest Price
Brand Name :	FC
Certification :	CE/ISO9001
Model Number :	FC-75/FC-90
Price :	25000-30000USD
Delivery Time :	Within 20-30 days
Payment Terms :	T/T
Supply Ability :	100set/year

Add to Cart

Product Details
Company Profile

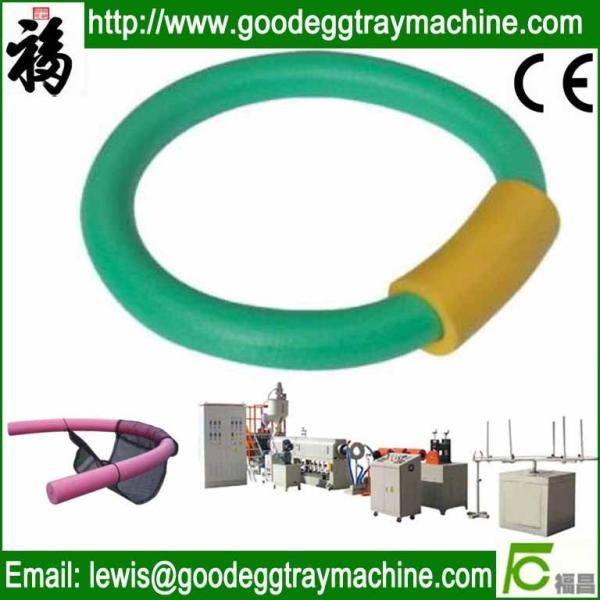

EPE swimming ring Extruder

Raw material: LDPE, GMS, TAC, Talc, Butane or Natural Gas

Capacity: 80-120kg/hr

Certification: CE, ISO9001

Skype:lewis15863824208

EPE swimming ring Extruder

1.Noodles are made of EPE

2.Help people to have fun in water

3.Hot in Europe and America

Features of EPE swimming ring::

The EPE Material is soft and floating

colorful and harmless

it help people playing in water to have fun

EPE swim ring

the EPE Material is soft and floating

colorful and harmless

it help people playing in water to have fun

EPE swim ring is EPE foam tub with foam connector, it has closed structure, low cost and lightweight, already widely used as swimming aid equipment. Over the years, we have won the AAA level enterprise credit ratings, consumer trust and favourites, keeping promises, and other awards.

Principle of EPE swimming ring Extruder:

The L/D of EPE Foam Pipe /Stick Extruder ‘s screw is 55 : 1.The raw material is high pressure and low density polyethylene . Through extruding system basis on formulation the raw material and the auxiliary material are transported into hopper by auto feeding system. The GMS will be injected into barrel by the pump as anti-contractor agent . Butane pump inject the liquid butane into the screw barrel and foam .The temperature is dropped by the barrel then the products will be extruded from the machine head.

You can know more about EPE swimming ring Extruder from the video link:

1.EPE Foam Pipe/Stick Extrusion Line's video:

http://www.youtube.com/watch?v=wPwRFAiWz0w

Main Technical Parameters of EPE swimming ring Extruder:
Model:	Unit	FC-75	FC-90
L/D:		55:1
Screw Speed:	r/min	5-60
Foaming Ratio:		10-40	10-40
Outer Diameter:	mm	∮50	∮90
Inner Diameter:	mm	∮10-20	∮20-40
Cooling Method:	water,cooling
Capacity:	kg/h	40-50		70-80
Installed Power:	kw	28		32
Dimension:	m	1.5×1.3×1.7		1.6×1.3×1.7
Total weight:	t	6		6.5

Contact:	Mr Lewis
Email:	lewis@goodeggtraymachine-com.ecer.com
Skype:	lewis15863824208
Gtalk:	lewis15863824208@gmail.com
Yahoo Messenger:	lewis15863824208@yahoo.com
Mobile:	+86-15863824208
Website:	http://www.goodeggtraymachine-com.ecer.com
We are the professional manufacturer of Pulp moulding Machine and EPE Foam Extruder Line etc in Longkou ,Shandong Province, China.
